Throttle position sensor

Discussion in '1993 - 1997 Ford Ranger' started by ZappyBear, Feb 17, 2018.

  1. ZappyBear

    ZappyBear Member

    Well, tested my TPS after having my ranger hesitating on acceleration. Turn out fuel pump is weak, 5psi under minimum value at idle and drainback is pathetic. Goes back to 0psi in 20 seconds. Anyway, I found some weak points doing a resistance test on it, couldn't do a voltage test as the battery is in my f150. I couldn't tell you the exact wires I was on, but the resistance climbed until 1/2 throttle then started dropping in resistance. WOT ended up having less resistance than idle. Is this normal?
  2. Ranger Forum Sign Up!

    Join Today - It's Totally Free!

    Are you a Ford Ranger fan? If so we invite you to join our community and see what it has to offer. Our site is specifically designed for you and it's a great place for Ford Ranger Fans to meet online.
    Once you join you'll be able to post messages, upload pictures of your Ford, and have a great time with other Ranger fans. Whether your an old timer or just bought your Ford you'll find that Ranger Forum is a great community to join. Best of all it's totally free!

    Join Today! JOIN FOR FREE

  3. OP

    ZappyBear Member

    Just did a voltage check on the sense wire, It's normal, but still jumps a little. Found out I had the probe between sense and ground. The real issue ended up being porcelain on spark plug cracked, 4th of july party in my engine bay didn't show up until last night.
  4. mhoward

    mhoward Member

    "4th of july party in my engine bay"

    LMAO, gonna have to remember that one! :)
  5. OP

    ZappyBear Member

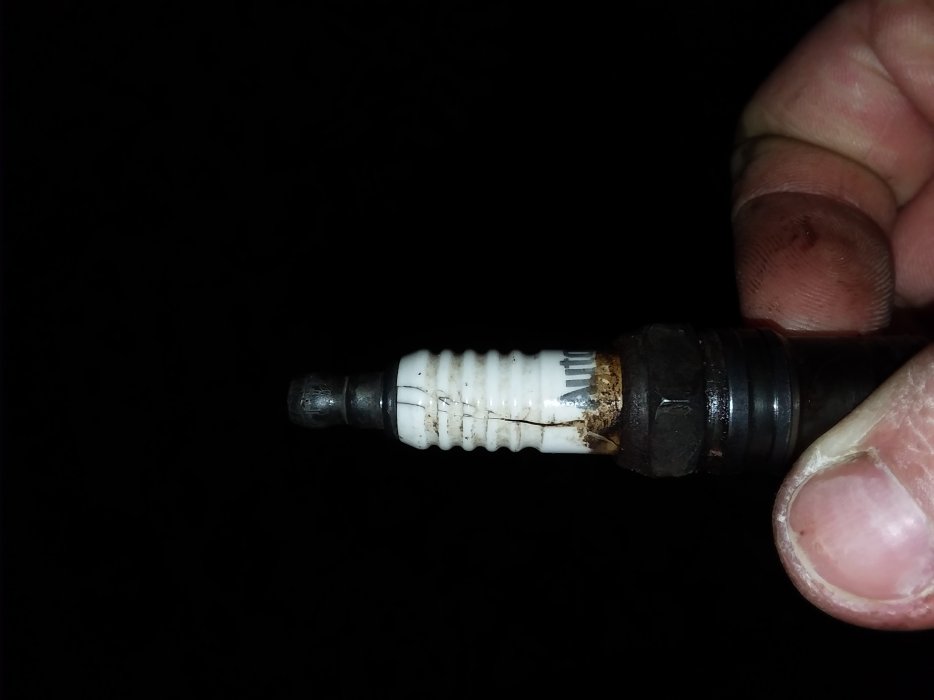

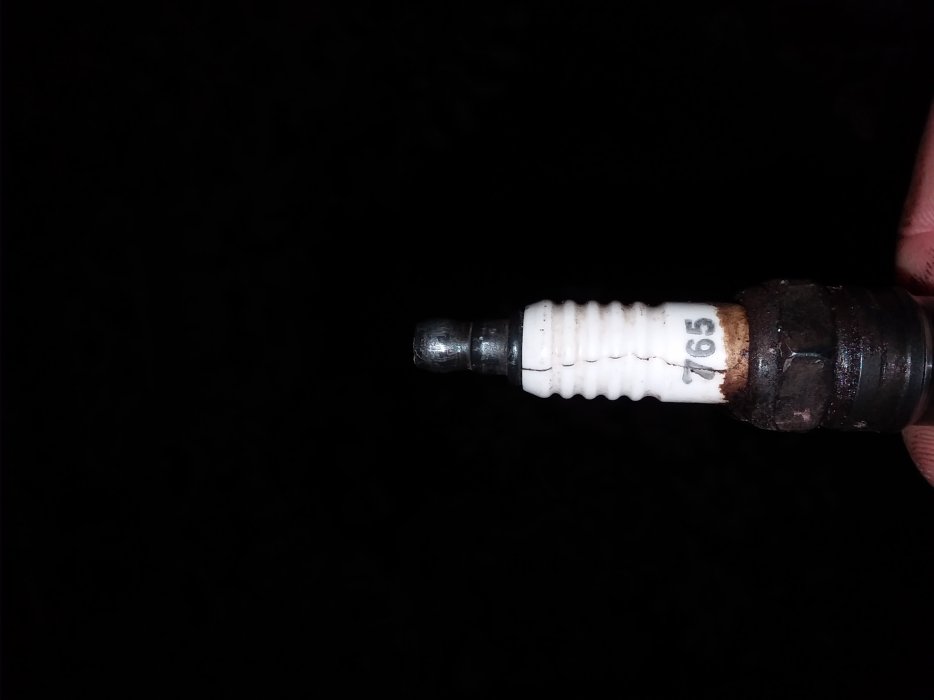

    Ah, forgot to post pics of the plug! 20180218_104538.jpg 20180218_104502.jpg
  6. mhoward

    mhoward Member

    Well, that certainly will cause a misfire. Glad you found the problem! :)
