Clutch switch

Discussion in '1993 - 1997 Ford Ranger' started by ZappyBear, Feb 20, 2018.

  1. ZappyBear

    ZappyBear Member

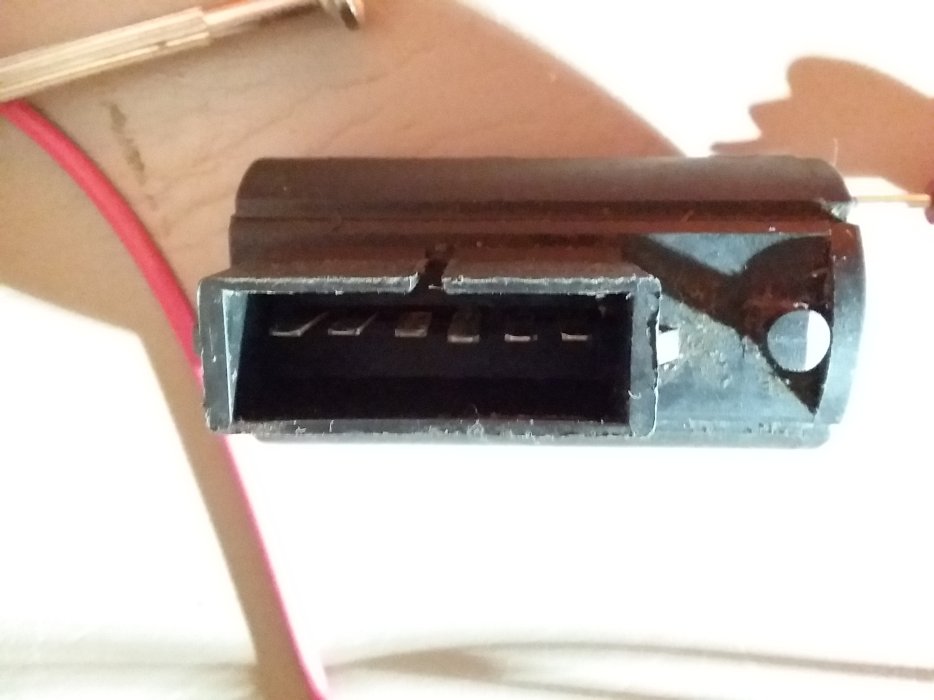

    I couldn't find this on the forums and instructions on Google are hard to come by. So I though I'd put this out there for people wanting to bypass their clutch switch. There are 6 pins on the switch, my ranger only uses two. I ohmed them out and this is what I got, with pedal pressed to the floor: 1-2 are connected, and 5-6 are connected. I believe 1-2 (the thicker wires) are for the starter relay, and 5-6 are for the shift module 4x4 low. 3-4 makes contact when pedal is up, but disconnects after what I think is barely a tap on the pedal, so it makes my believe this is for the cruise control (which my truck doesn't have), the very little travel before the switch changed would give the cruise control module time to cancel before the clutch is fully depressed so the engine doesn't rev to infinity. 20180220_074714.jpg
  2. Ranger Forum Sign Up!

    Join Today - It's Totally Free!

    Are you a Ford Ranger fan? If so we invite you to join our community and see what it has to offer. Our site is specifically designed for you and it's a great place for Ford Ranger Fans to meet online.
    Once you join you'll be able to post messages, upload pictures of your Ford, and have a great time with other Ranger fans. Whether your an old timer or just bought your Ford you'll find that Ranger Forum is a great community to join. Best of all it's totally free!

    Join Today! JOIN FOR FREE

  3. mhoward

    mhoward Member

    I believe you are correct on the pins 3&4. I remember something about that when I was researching to add speed control to my truck. Mine is an automatic, so it didn't apply but I remember seeing that in the diagrams.
